Broadway Complete Streets update

Dan Allison2 Comments

This is the eighth post (I think) on the Broadway Complete Streets project. Additional posts on Broadway Complete Streets are available at category ‘Broadway Complete Streets‘.

The long-line striping on Broadway is essentially complete, with the addition of yellow lines for center dividers and the center turn lane. There is still no green paint for bicycle facilities, and the shared transit/bike areas. None of the crosswalks have been installed. This lack of attention to crosswalks is typical of the entire project, motor vehicles first, sidewalks last and walkers crossing last.

Broadway at 3rd St striping
Broadway at 3rd St striping

The short curb-separated bikeway eastbound between 15th Street and 16th Street was closed yesterday, though I had used it a few days earlier. I noticed a bicycle signal on Broadway at 16th Street / Land Park Drive, which may have not been there before or may not have been activated and so I didn’t notice it. In a short while of observing, it did not change to green, so perhaps it is awaiting completion of the curb-separated bikeway.

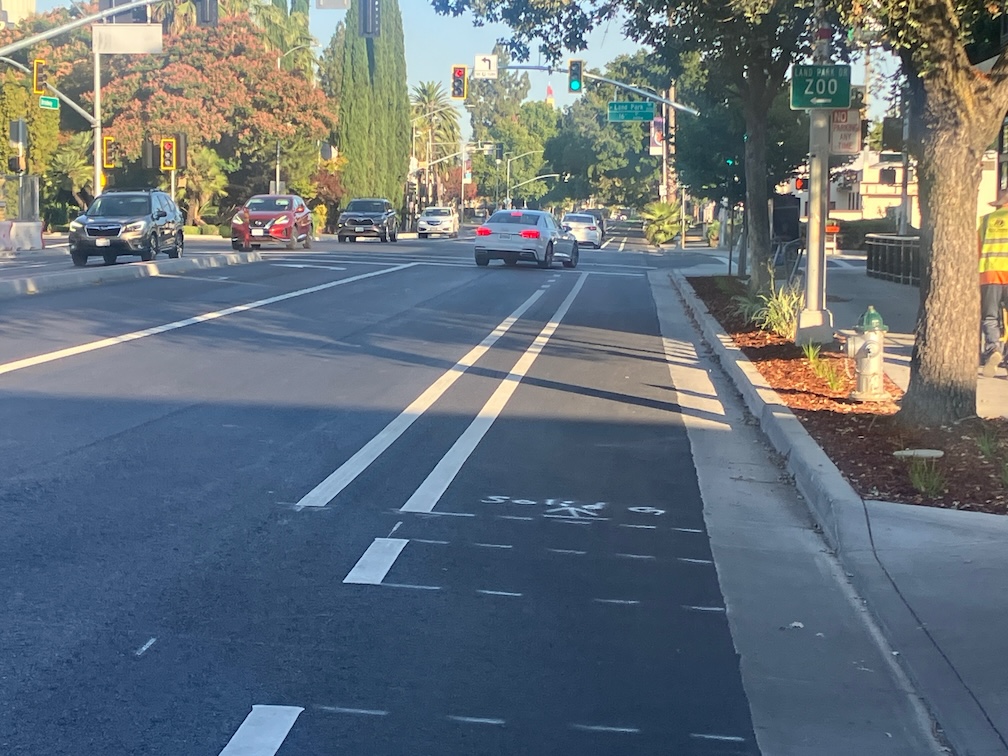

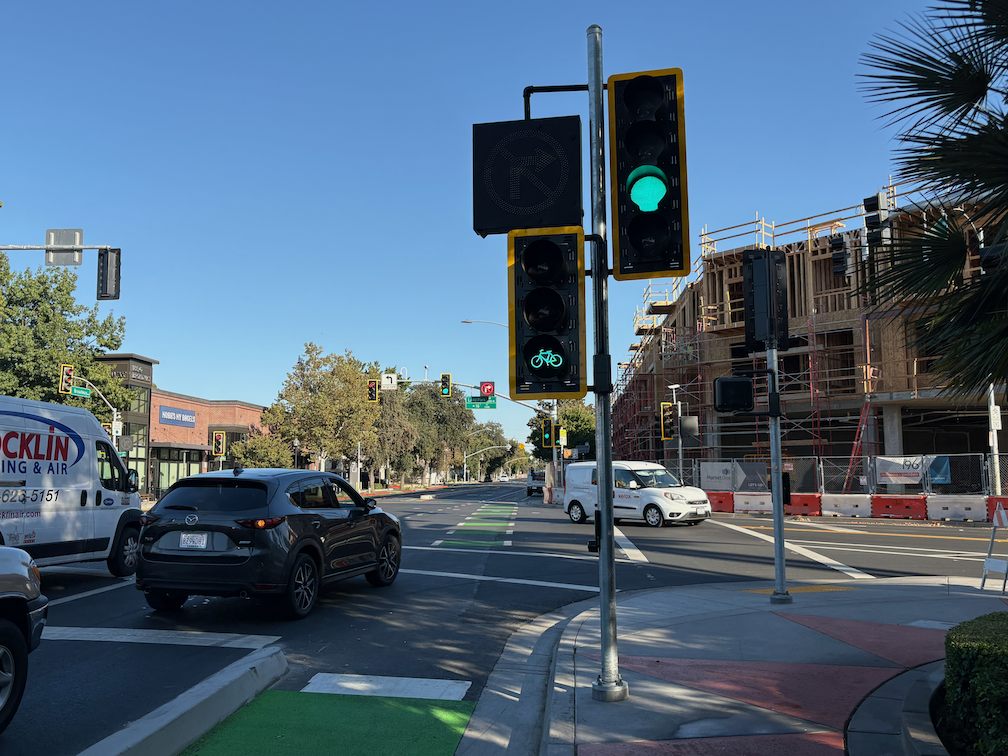

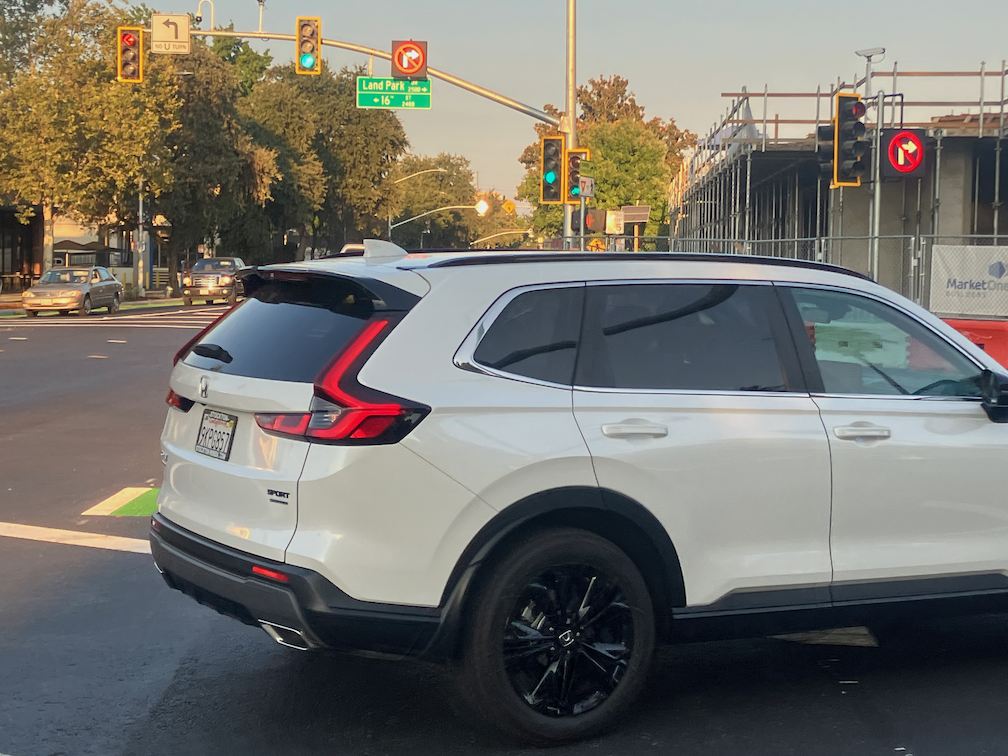

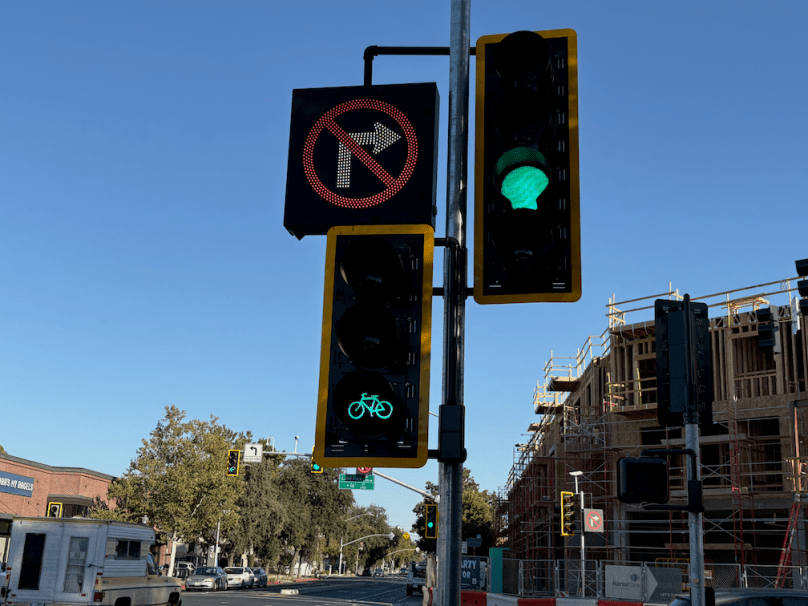

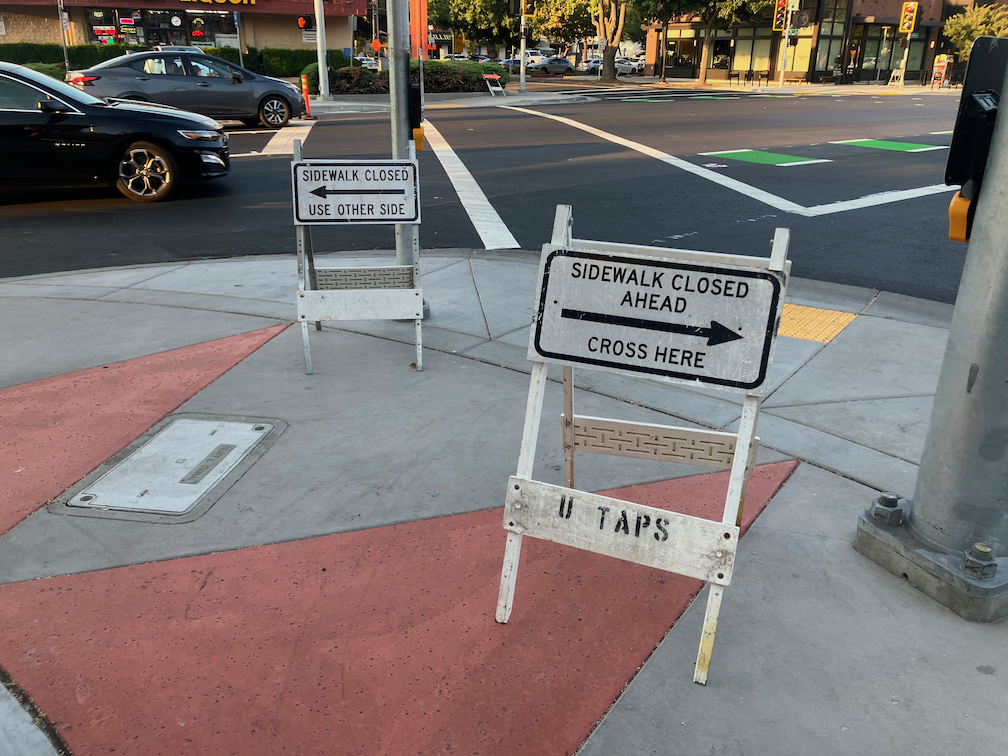

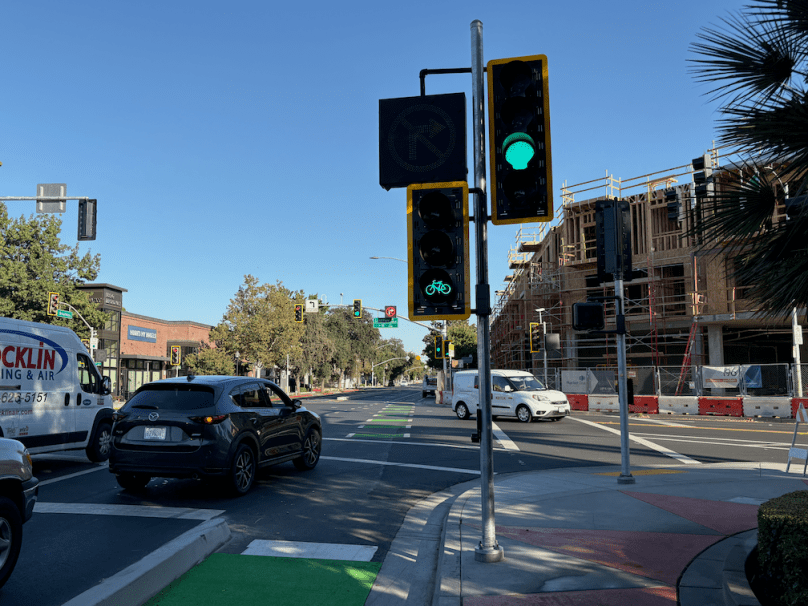

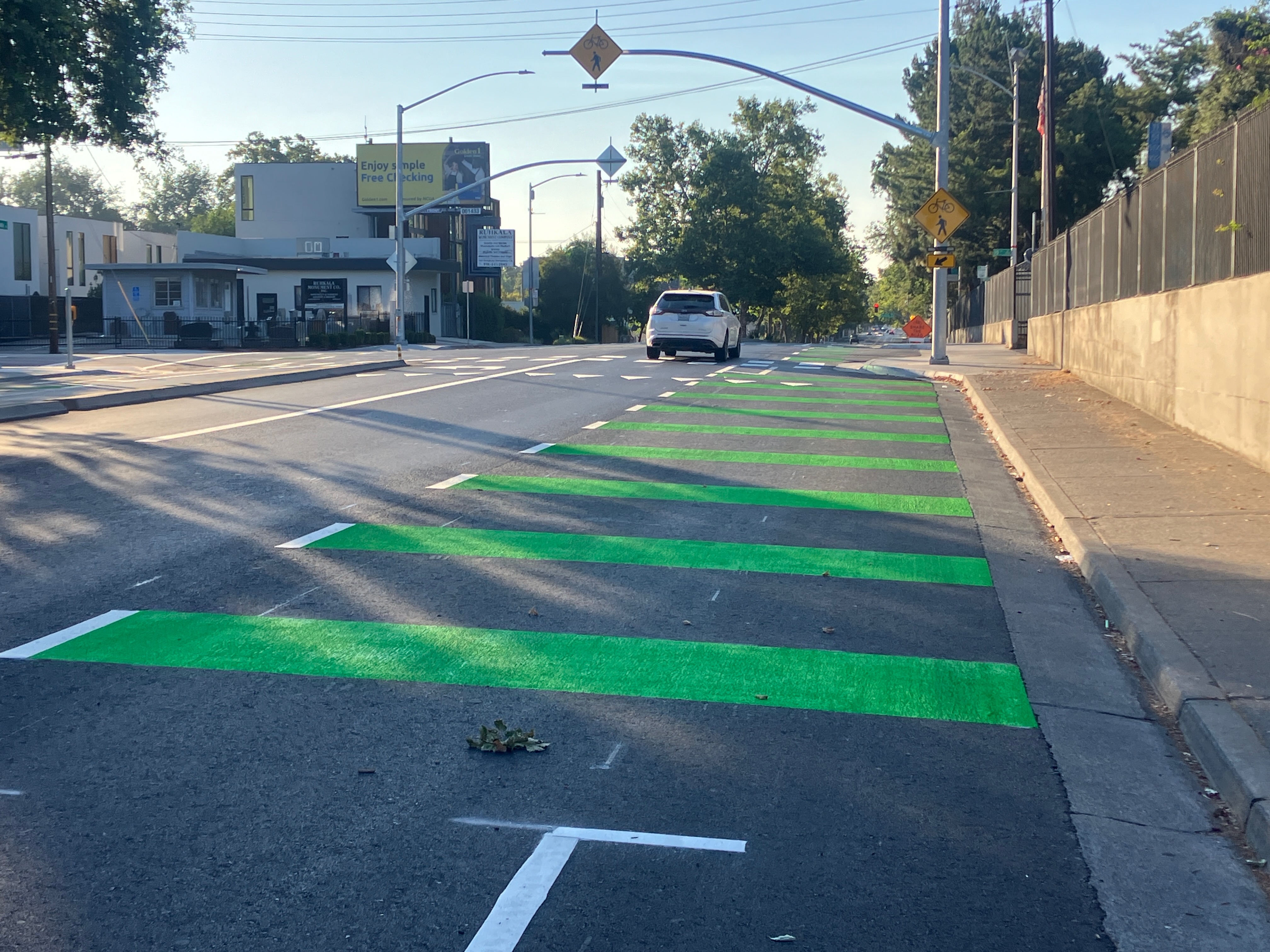

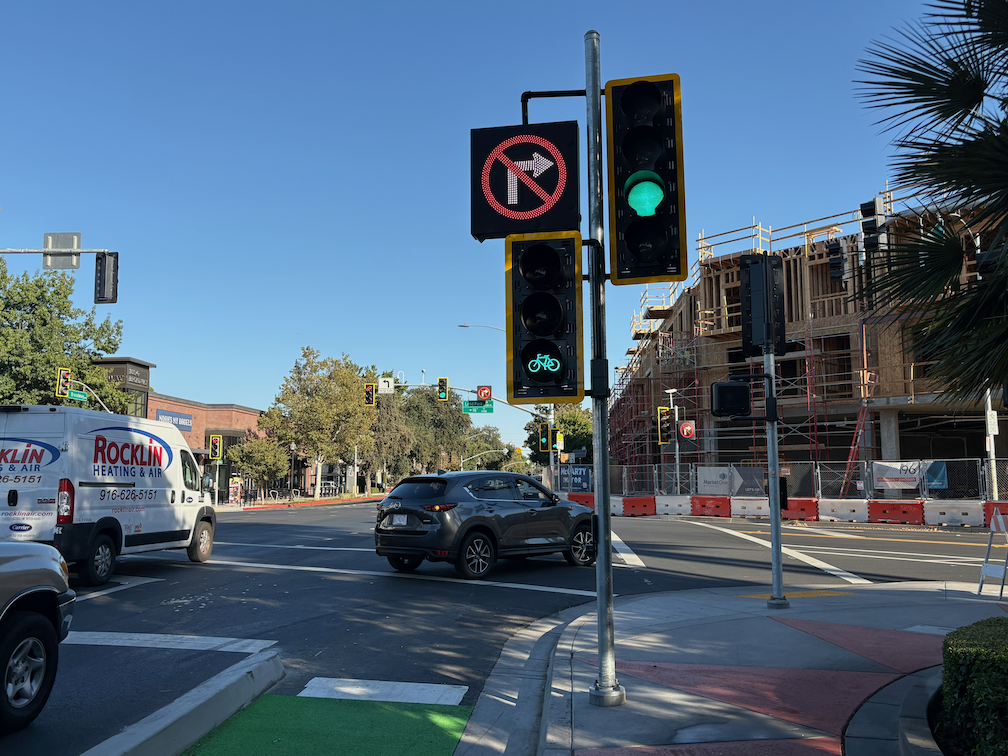

Broadway at 16th St / Land Park Dr, eastbound, bicycle signal
Broadway at 16th St / Land Park Dr, eastbound, bicycle signal

I continue to have concerns about the RRFBs (rectangular rapid flashing beacon) used for several crosswalks along Broadway. The one in the photo below seemed to be stuck on, for unknown reasons. The rate of driver yielding to people crossing is very low. An observer pointed out that because RRFBs are not common in Sacramento, drivers may not know how to deal with them, and that this would be a perfect time for a city educational effort to bring drivers up to speed (so to speak). The particular location shown below, Broadway at 22nd, has a median island in the center, preventing drivers from passing stopped motor vehicles by using the center turn lane. Other locations do not have this protection, and I observed at least one instance of a driver passing a stopped vehicle by using the center turn lane at Broadway and 18th Street. Reduced general purpose lanes, from two per direction to one per direction, do significantly reduce the multi-lane threat, where one vehicle stops and others do not, but the center turn lane allows drivers to continue to threaten walkers, and to violate the law.

Broadway at 22nd Str, RRFB and walker
Broadway at 22nd Str, RRFB and walker

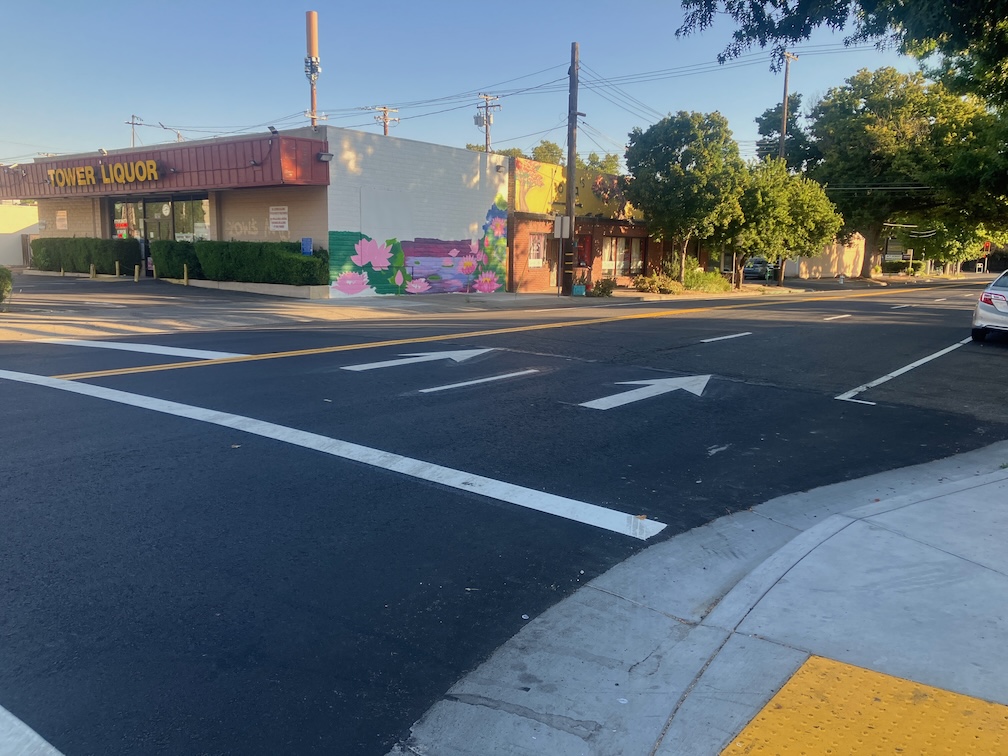

As recently as the Broadway Fact Sheet in 2019, conversion of 16th Street between Broadway and X Street from one-way to two-way was part of the project. I’ve seen no evidence of work on that part, so it may have been delayed or may have been dropped. Also, work on Broadway between 19th Street and 21st Street has been delayed to another phase due to prolonged negotiation with Union Pacific over whether there will be one or two traffic lanes per direction approaching the railroad tracks between 19th Street and 20th Street.

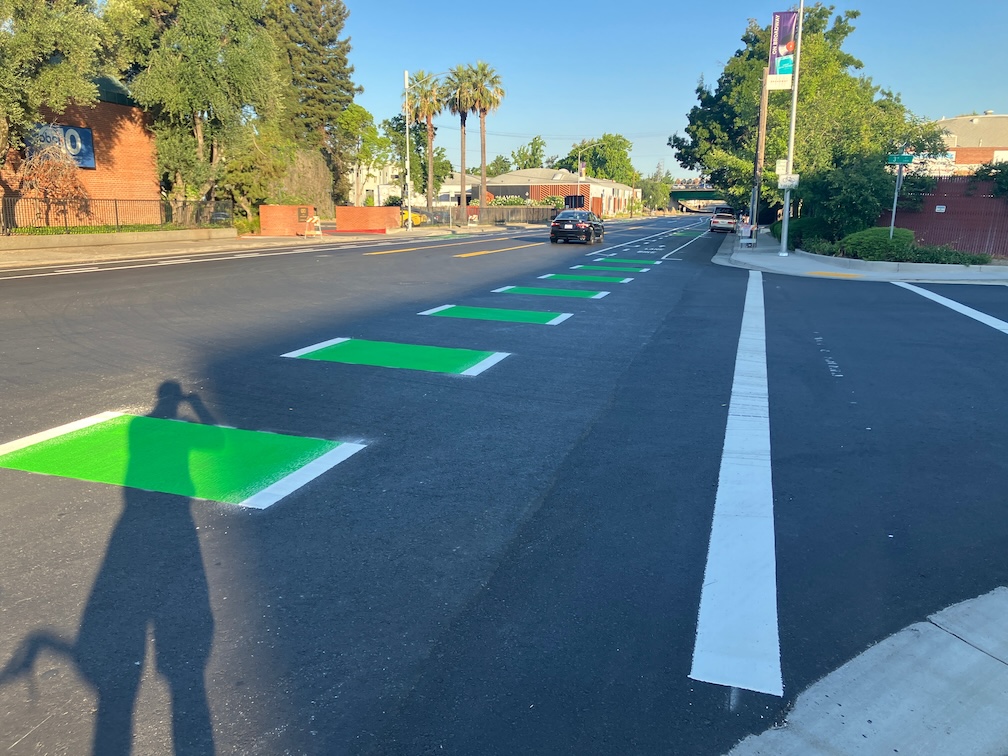

I’ll post again when green paint has been installed, and the crosswalks completed.

Broadway Complete Streets update

Dan AllisonLeave a comment

Additional posts on Broadway Complete Streets are available at category ‘Broadway Complete Streets‘.

Striping is finally occurring on Broadway, more than two weeks after marking for the striping was completed. Crosswalks have not been striped, though if I were in charge, they would be the first thing striped. Striping is incomplete from 3rd Street to 11th Street, and there is minor striping east of there. There is no green paint yet.

photo of partial striping on Broadway at 3rd St
partial striping on Broadway at 3rd St

RRFBs (rectangular rapid flashing beacon) signals have been installed at three locations. These are mounted on poles and mast arms. Some observation has indicated they are being widely ignored by drivers. A person who has watched the RRFB at 18th Street says that only about 5% of the drivers were yielding to walkers who had triggered the lights. I will do more observation and talk to more people about their observations, but so far, the concerns I expressed in RRFBs are being ignored are true on Broadway.

Broadway Complete Streets update

Dan AllisonLeave a comment

Additional posts on Broadway Complete Streets are available at category ‘Broadway Complete Streets‘.

The section of Broadway from just west of 3rd Street to 19th Street has been repaved, and marked for striping, but no striping has been done yet. The section from 21st St to 24th Street has been ground down in preparation for paving, but no paving has occurred.

There are construction vertical delineators scattered all over the street, along with delineator bases without the vertical. Most of the delineators were placed in what will be the bike lane, not in what will be the bike lane buffer. Presumably the construction company wishes to keep them further away from motor vehicles, which is sort of understandable since more than one-third of the delineators have been hit by drivers.

I’ll post again when there is actual striping installed.

Broadway complete streets update

Dan AllisonLeave a comment

Additional posts on Broadway Complete Streets are available at category ‘Broadway Complete Streets‘.

I walked part of Broadway today. Not too much has happened. The street west of 11th St/Riverside has been ground down in preparation for overlay, but no overlay has occurred. All of the motor vehicle traffic signals have been installed and turned on. However, NONE of the pedestrian crossing signals have been installed. One of the claimed benefits of the project, to make it safer for people walking to cross Broadway, has been neglected, put at the bottom of the list. It solidifies my opinion that this is really a motor vehicle project, not a safety project. So it goes with City of Sacramento projects.

Broadway Complete Streets is NOT

Dan AllisonLeave a comment

The Broadway Complete Streets project is underway, with new corners installed at many locations, some of them curb extensions (bulb-outs) to shorten crossing distance for walkers. Though I’m reluctant to criticize a project that is underway, I just can’t remain quiet. I have been spending a lot of time on Broadway because I’m interested in the street and its businesses, and always want to see how the city is shifting away from its former ‘cars first’ policy and design. Some of what I’m seeing is great, but I’m also seeing a lot that makes me very concerned, and disappointed. The city could have done much better, but decided not to.

photo of Broadway near 19th St, south side, too narrow sidewalk
Broadway near 19th St, south side, too narrow sidewalk

The project was designed from the inside out, first motor vehicle space for turn lanes, travel lanes, and parking lanes, then bicycle lanes. The result clearly shows this priority. But streets should be designed from the outside in, taking care first of the needs of people walking. The city did not do this.

The Broadway Complete Streets webpage says “The project location is the two-mile Broadway corridor between 3rd Street and 29th Street, south of downtown Sacramento, California. It anchors multi-modal transportation connections and improves access for all modes through introduction of a four lane to three lane road diet, new buffered bicycle lanes, new marked pedestrian crossings and refuge islands, and multi-modal improvements at two intersections”, and “The project is designed to calm traffic, improve safety, and make the street more inviting for travel on foot and by bicycle.” Notice that sidewalks are not specifically mentioned.

The pedestrian selection criteria from the 2016 Broadway Complete Streets Final Recommendations shows the following table. The third row (of eight) is ‘pedestrian space’, and it talks about space at ‘sidewalk enhancement locations’. But the document never indicates where these location are, nor mentions them again.

The plan cites as a critical issue: “Sidewalk obstructions or narrow sidewalks”. It also says, under transit improvement, not sidewalks: “Over time, opportunities for sidewalk expansion can be explored on blocks as appropriate. The Broadway Complete Streets Plan designs allow for conversion of the parking lane to an expanded sidewalk to create space for better bus amenities, landscaping, sidewalk dining, and other urban design elements.” What I think that means is that concrete for sidewalks and curbs will be poured now, and we’ll think about doing better later. The document refers to information about sidewalk widths in the existing conditions technical appendix, but that document has not been made available to the public.

The city’s Street Design Standards for sidewalks is five feet, or six feet for arterials. Broadway is a ‘minor arterial’ from 5th Street to 10th Street, and a ‘principal arterial’ from 10th Street to 29th Street, so the sidewalk width would be six feet. Existing sidewalks along Broadway vary greatly in width, from expansive, to wide sidewalks typical of the central city, to very narrow sidewalks. Of course there are locations where the sidewalk has been narrowed to accommodate tree growth, but the city is installing NEW sidewalk along Broadway that is less than city standards. The PROWAG requirements are four feet, but there are NEW sidewalks that are as little as 34 inches. The city’s project engineer has claimed that PROWAG does not need to be followed for this project because PROWAG is not enforceable yet. Seems strange to claim that because enforcement action can’t be taken, federally promulgated regulations don’t need to be followed.

The project is installing better crossings for walkers at several locations, but has pretty much ignored the needs of people walking ALONG the street. The design documents do not show sidewalk widths anywhere, though turn lane, traffic lane, parking lane, and bike lanes are clearly labeled with widths. It is as though the project design did not even think about sidewalks.

The city must correct its too-narrow sidewalks along Broadway. Where a parking lane is adjacent to these too narrow sections, the parking lane must be converted to sidewalk so as too provide the legally required width, or better yet, at least eight feet. If this is to be a complete street, and a walking-friendly and business-friendly street, then eight feet should be the minimum. If a parking lane is not available to convert, then the city must purchase property or easements to widen the sidewalks to the minimum five feet required by its own standards.

Broadway diagonal ramps

Dan AllisonLeave a comment

Additional posts on Broadway Complete Streets are available at category ‘Broadway Complete Streets‘.

Many of the corner ADA ramps already installed and to be installed as part of the Broadway Complete Streets project are diagonal ramps. Diagonal ramps were a common solution in the past for corners because they save a little bit of money, and sometimes avoid drain inlets that perpendicular ramp would conflict with. Changing drain inlet locations can be expensive. However, diagonal ramps have never been the optimal solution for corners, and since August 2023, they are not permitted under PROWAG (Public Right of Way Accessibility Guidelines), except under rare circumstances. In those rare circumstances, the ramp must be completely contained within the two crosswalks, which often leads to awkward crosswalks.

There are very few diagonal ramps in the Sacramento central city, so it is surprising that they will be so common at the edge of the central city, Broadway, as part of a complete streets project.

Some transportation agencies have been claiming that they don’t need to follow PROWAG since it has not yet been adopted by USDOJ and USDOT, however, that just means that it is not yet legally enforceable on agencies. But the regulation has been promulgated and published and is now the law.

The project engineer for Broadway Complete Streets has claimed that the diagonal ramps are specified because of “design constraints”. I have looked at every corner where a diagonal ramp was placed, and I see nothing that constitutes a constraint. It may be that what the city means is that it didn’t fit in the budget to install perpendicular ramps, but that is not a valid exception in PROWAG. It is worth remembering that the concrete being installed under this project will be in place for at least 30 years, so that means the city is constructing corners and ramps that are already outmoded, and will be far more so in 30 years.

Of the 15 locations that will have new diagonal ramps, and the 2 that apparently will be unchanged, the northwest corner of Broadway and 18th Street will serve as an example. The other three corners here have perpendicular ramps, but for unknown reasons, the northwest has a diagonal ramp.

photo of Broadway & 18th St diagonal ramp
Broadway & 18th St diagonal ramp

The diagram below, from NACTO, shows perpendicular ramps. Note also the tight turning radius, which slows turning drivers. Of course the optimal is if these ramps are contained within a curb extension, but even without that, they are a good practice.

diagram of NACTO perpendicular ramps
NACTO perpendicular ramps

The next diagram snows perpendicular ramps in the context of curb extensions, and illustrates the huge benefit of curb extensions, which is increased visibility between walkers and roadway users. The curb extension also removes the need to paint the curb red or place a sign, one of which is required now under AB 413 (Lee, 2023). Caltrans includes curb extensions in its Pedestrian Safety Countermeasures Toolbox.

diagram of curb extension creating visibility (source unknown)
curb extension creating visibility (source unknown)

The table below shows the plan for each corner along the corridor from 3rd Street to 24th Street, with details about ramps and curb extensions. The plan I have does not include any change from the west side of 19th Street to the east side of 21st Street. This section includes the crossing between 19th and 20th by light rail and railroad tracks. It is unknown why this is.

Cross-streetNWNESWSENotes
3rd SNoneNoneDiagonal existingDiagonal newNo crosswalks
3rd NDiagonal newDiagonal existingNoneNoneNo crosswalks
5thPerpendicular newPerpendicular newPerpendicular newPerpendicular new
6thDiagonal newPerpendicular existNoneSingleW crosswalk removed
Midblock



New, single with extensions
8thDiagonal existingDiagonal newNoneNoneNo crosswalks
Muir WayNoneNoneDiagonal newDiagonal newNo E crosswalk
9thDiagonal newPerpendicular existNoneNoneNo crosswalks
10thPerpendicular newPerpendicular newSingle, extensionSingle, extension
RiversideDiagonal newDiagonal newDiagonal newDiagonal new, extension
13thPerpendicular existPerpendicular new, extensionSingleSingle
14th Perpendicular new, extensionPerpendicular new, extensionPerpendicular new, extensionPerpendicular new, extension
15thPerpendicular newDiagonal newSingleNoneNo E crosswalk
16th/Land ParkPerpendicular newPerpendicular new, extensionDiagonal newPerpendicular new, extensionW crosswalk unknown
17thPerpendicular newPerpendicular new, extensionDiagonal new, extensionPerpendicular new, extensionW crosswalk removed
18thPerpendicular new, extensionDiagonal newPerpendicular new, extensionPerpendicular new, extension
19th



Unknown
20th



Unknown
21st



Unknown
22ndPerpendicular newPerpendicular new, extensionNoneSingle, extensionW crosswalk removed
23rdPerpendicular new, extensionPerpendicular new, extensionSingle, extensionNoneW crosswalk only
24thNo changeNo changeNo changeNo change
table of Broadway Complete Streets corners and curb extensions

Broadway too-narrow sidewalks

Dan Allison3 Comments

This is a follow-up to my serious concerns about Broadway post. There will be additional posts about the Broadway Complete Streets project. The Broadway Complete Streets project is underway, with several locations of corners, midblock crossings, curbs, and sidewalks already reconstructed.

It is clear that throughout the planning and construction of this project, sidewalks were ignored or discounted. The project is all about the roadway, reducing motor vehicle lanes to 2 plus a turn lane (from 4), and adding buffered bikeways. It is common in project planning to assume that sidewalks will not be disturbed, and therefore do not need to be brought up to current ADA/PROWAG requirements. However, sidewalks are being replaced, newly constructed, in several locations along Broadway. That means they do have to meet current requirements, and that requirement is a clear width of 48 inches.

The Broadway Complete Streets Final Recommendations (2016) document identifies ‘Sidewalk obstructions or narrow sidewalks’ as a critical issue. It also says “The proposed road diet allows for a buffered bike lane through the entire corridor, and presents opportunities for pedestrian crossing improvements, new pedestrian crossings, and sidewalk enhancements.” However, other than curb extensions at intersections and mid-block crossings, nothing in the design actually enhances sidewalks. The ‘typical cross section proposed’ is below. Though the diagram shows 8 foot sidewalks, the actual sidewalk width varies greatly along the corridor.

diagram of Broadway Complete Streets typical cross-section proposed
Broadway Complete Streets typical cross-section proposed
Read More »

Central City Mobility: new beg buttons on 5th Street

Dan Allison1 Comment

This is Central City Mobility Project update #33. Note that 5th Street has not yet been converted from one-way to two-way.

When looking at 5th Street, part of the Central City Mobility Project to convert this from a one-way street to a two-way street, I was focused on the looking at the new signals and the mast arms. I failed to notice all the new beg buttons that have been installed. These are the ‘wave at’ variety. Installations are at Q Street, P Street, N Street and Capitol Mall. At Q, P, and N Streets, there are 8 new buttons per intersection. At Capitol Mall there are six, all on the east side of the intersection, because there is a pedestrian crossing prohibition on the west side. I don’t have documentation of what was here before these were installed, but I’m pretty sure that these intersections were on auto-recall, meaning that the button did not need to be pressed, or waved at. I have to admit I have been fooled again by City of Sacramento Public Works. I had been assuming that either things would remain the same, or things would get better. They have proved me wrong by making things worse.

photo of 5th St & Q St SE new wave beg button
5th St & Q St SE new wave beg button

There are beg button posts installed at R Street as well, but since this crossing of 5th St has not been activated, I don’t know how the beg buttons will be labeled.

Read More »

serious concerns about Broadway

Dan Allison3 Comments

The Broadway Complete Streets project, to reallocate the street from 3rd Street to 24th Street, is underway. I have been walking this section recently, and I see several things that greatly concern me. To be honest, I was not paying much attention when this project went through public review, and attended only one meeting. I had not looked closely at the project documents. The page linked above confuses me. There are no final design documents, yet I have several documents more recent, including one that says final. Did the city unlink these newer documents? Lose them?

It appears from the work I see being done currently, that parking will be preserved along the entire length of the project. While this makes complete sense where there are small businesses, there are also several blocks where there are large buildings that provide off-street parking, or fast food chain restaurants that that have ample off-street parking. Parking can be a good thing, but not when it takes the place of wider sidewalks and sidewalk buffers.

One positive is that vertical curbs are being installed, replacing the rolled curbs that exist along much of the street at this time. But a negative is that apparently curb lines are not being moved as part of the project, meaning that under-width sidewalks and under-width sidewalk buffers will remain so. A diagram from the planning process shows eight foot sidewalks.

diagram of proposed roadway allocation
diagram of proposed roadway allocation

Here is an actual constructed section, north side between 18th and 19th Streets. The sidewalk is six feet, and a completely useless sidewalk buffer of about 18 inches is included. A sidewalk buffer this narrow cannot provide planting space, and does not provide any physical or visual separation from the street. The street width could have been reallocated to a wider sidewalk, and a sidewalk buffer wide enough to host trees, but it was not.

photo of Broadway narrow sidewalk and narrow buffer new construction
Broadway narrow sidewalk and narrow buffer new construction
Read More »
